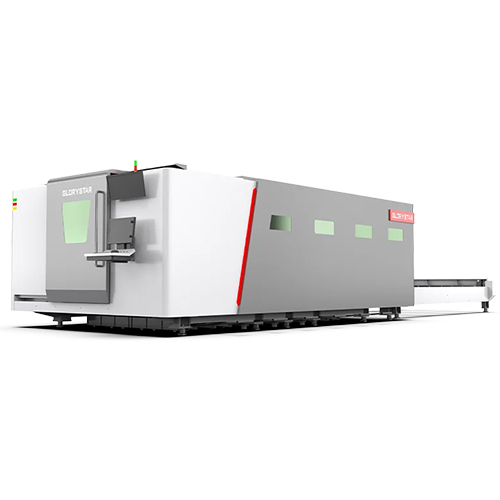

GS-CE PRO SERIES Ultra-High Power Fiber Laser Metal Sheet Cutting Machine

GS-3015CE Pro

GS-4020CE Pro

GS-6020CE Pro

GS-6025CE Pro

GS-8025CE Pro

GS-12025CE

Max. material width (mm)

30001500 105ft

40002000 137ft

60002000 205ft

60002500 208ft

80002500 268ft

120002500 408ft

X axis travel (mm)

1530 / 5.1ft

2030 / 6.7ft

2030 / 6.7ft

2530 / 8.3ft

2530 / 8.3ft

2530 / 8.3ft

Y axis travel (mm)

3020 / 99ft

4020 / 13 2ft

6020 / 198ft

6020 / 198ft

8020 / 26 3ft

12020 / 395ft

Z axis travel (mm)

290-450 / 11.5-17.8in

290-450 / 11.5-17.8in

290-450 / 11.5-17.8in

290-450 / 11.5-17.8in

290-450 / 11.5-17.8in

290-450 / 11.5-17.8in

X/Y positioning accuracy

0.03mm/m / 0.00118in/39.4in

0.03mm/m / 0.00118in/39.4in

0.03mm/m / 0.00118in/39.4in

0.03mm/m / 0.00118in/39.4in

0.03mm/m / 0.00118in/39.4in

0.03mm/m / 0.00118in/39.4in

X/Y repeat positioning accuracy

0.02mm / 0.00079in

0.02mm / 0.00079in

0.02mm / 0.00079in

0.02mm / 0.00079in

0.02mm / 0.00079in

0.02mm / 0.00079in

Max. synthetic positioning speed

190m/min / 624.5ft/min

190m/min / 624.5ft/min

190m/min / 624.5ft/min

190m/min / 624.5ft/min

190m/min / 624.5ft/min

190m/min / 624.5ft/min

Max. acceleration

4.0G

3.5G

3.5G

3G

2.8G

2.8G

Slit width

0.1mm-0.5mm / 0.0039in-0.0197in

0.1mm-0.5mm / 0.0039in-0.0197in

0.1mm-0.5mm / 0.0039in-0.0197in

0.1mm-0.5mm / 0.0039in-0.0197in

0.1mm-0.5mm / 0.0039in-0.0197in

0.1mm-0.5mm / 0.0039in-0.0197in

Incision roughness

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Ra3.2um-Ra25.4um / Ra0.000126-Ra0.001in

Max. cutting thickness range

Refer to the following process parameter table

Refer to the following process parameter table

Refer to the following process parameter table

Refer to the following process parameter table

Refer to the following process parameter table

Refer to the following process parameter table

Min. setting unit

0.001mm / 0.00003937in

0.001mm / 0.00003937in

0.001mm / 0.00003937in

0.001mm / 0.00003937in

0.001mm / 0.00003937in

0.001mm / 0.00003937in

Floor area of machine tool (mm)

92404000 30.313.2ft

122004500 40.114.8ft

165604500 54.414.8ft

165605000 54.416.4ft

208505000 68.416.4ft

291505000 95.716.4ft

Host volume (mm)

914030302640
30108 7ft

1120036202200
36 811 97 3ft

1556036202200
51 111 97 3ft

1556041202600
51 113 58 6ft

1985041202600
65 213 68 6ft

2815042002600
92 413 88 6ft

CNC system

FSCUT

FSCUT

FSCUT

FSCUT

FSCUT

FSCUT

Monitor

27" LCD

27" LCD

27" LCD

27" LCD

27" LCD

27" LCD

Transfer method

Rack and pinion dual drive

Rack and pinion dual drive

Rack and pinion dual drive

Rack and pinion dual drive

Rack and pinion dual drive

Rack and pinion dual drive

Max. load-bearing capacity of worktable (tons)

4.3 / 9481lbs

6.2 / 13669bs

9.3 / 20403lbs

14.2 / 31306lbs

18.9 / 41668lbs

28.3 / 62391lbs

Total installed power consumption

12000W 100KVA

12000W 100KVA

12000W 100KVA

12000W 100KVA

12000W 100KVA

12000W 100KVA

Total installed power consumption

20000W 150KVA

20000W 150KVA

20000W 150KVA

20000W 150KVA

20000W 150KVA

20000W 150KVA

Total installed power consumption

30000W 200KVA

30000W 200KVA

30000W 200KVA

30000W 200KVA

30000W 200KVA

30000W 200KVA

Total installed power consumption

40000W 300KVA

40000W 300KVA

40000W 300KVA

40000W 300KVA

40000W 300KVA

40000W 300KVA

Power requirements

AC380V , 50Hz ; 3P+N+PE

AC380V , 50Hz ; 3P+N+PE

AC380V , 50Hz ; 3P+N+PE

AC380V , 50Hz ; 3P+N+PE

AC380V , 50Hz ; 3P+N+PE

AC380V , 50Hz ; 3P+N+PE

Total power protection level

IP54

IP54

IP54

IP54

IP54

IP54
