VS-CEG SERIES Fully Enclosed Sheet And Tube Combined Fiber Laser Cutting Machine

VS-CEG SERIES Fully Enclosed Sheet And Tube Combined Fiber Laser Cutting Machine Specification

Usage & Applications
Sheet & Pipe Metals Processing, Industrial Manufacturing, Mechanical Fabrication, Automotive, Decorations

Phase
Three Phase

Technology
Laser Cutting

Working Area
Sheet: 30001500mm, Pipe: Up to 6m length, 20-220mm diameter

Power
1000W - 6000W (optionally up to 20kW)

Product Type
Fully Enclosed Sheet And Tube Combined Cutting Machine

Laser Type
Fiber Laser

Material

Cutting Thickness
0.5mm - 30mm (depends on material and laser power)

Cutting Area
3000mm 1500mm (customizable)

Cutting Speed
Max. 120m/min (depends on material and thickness)

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
CypCut / FSCUT / Weihong

Graphic Format Supported
AI, DXF, PLT, BMP, DXP

Control System
CNC Control System

Voltage
380V 10% 50/60Hz, 3 Phase

Weight (kg)
6500 to 11000 kg (varies by configuration)

Dimension (L*W*H)
9200mm 3200mm 2500mm (reference standard model)

Capacity
24 Hours Continuous Working

Feature
Fully Enclosed Design, Dual-use Sheet & Tube, Safe Operation, High Precision

Color
Customizable (Standard: White & Orange/Blue)

Max Acceleration
1.0G - 1.5G

Table Exchange Time
Less than 15 seconds (for models with shuttle table)

Drive Motor
Japan YASKAWA/France Schneider/Delta servo motor options

Operation Interface
Touch Screen Panel with Multi-language Support

Protective Cover
Yes, Fully Enclosed Structure

Humidity
80%, non-condensing

Ambient Temperature
5-40C operating range

Pipe Cutting Range
20mm220mm (round), 20x20mm150x150mm (square), Up to 6m pipe length

Repeat Positioning Accuracy
0.02mm

Focus System
Auto-Focus Laser Cutting Head

Air Requirements
0.6-0.8MPa, clean & dry air

Laser Source Brand
IPG, Raycus, MAX Photonics, nLIGHT (option)

Transmission Method
Rack and Pinion + Linear Guide Rail

Exhaust System
Integrated dust removal and fume extraction system

Optional Accessories
Automatic Loading/Unloading System, Chiller, Air Compressor, Spare Lenses

Positioning Accuracy
0.03mm/m

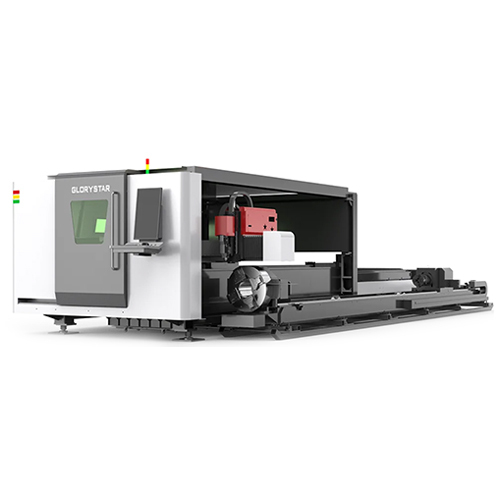

About VS-CEG SERIES Fully Enclosed Sheet And Tube Combined Fiber Laser Cutting Machine

	VS-3015CEG
Working Area	30001500mm / 510ft
Laser Power	1000-6000W
Positioning Accuracy	0.03mm / 0.00118in
Repeat positioning Accuracy	0.02mm / 0.00079in
Overall Dimensions	950045002050mm / 33157.2ft

Precision and Efficiency in Metal Cutting

Achieve exceptional accuracy with positioning up to 0.03mm/m and repeatability of 0.02mm. Coupled with a maximum speed of 120m/min and rapid table exchange in under 15 seconds, the VS-CEG SERIES delivers both speed and consistent quality across every cut. Auto-focus laser heads and CNC control ensure optimal results for all supported materials.

Advanced Dual-Use Capability

Designed to maximize versatility, this machine can cut both sheet metals (up to 30001500mm) and pipes (up to 6m, 20-220mm diameter). This all-in-one capability caters to diverse manufacturing needs, including mechanical fabrication, automotive components, and decorative applications, streamlining your workflow with one machine.

Enhanced Safety and Clean Operation

Safety is paramount with the fully enclosed cover and an integrated exhaust system for dust and fume extraction. The machine's enclosure protects operators, while the large touchscreen interface supports multiple languages. Reliable components and water cooling ensure continuous 24-hour operation in industrial settings.

FAQ's of VS-CEG SERIES Fully Enclosed Sheet And Tube Combined Fiber Laser Cutting Machine:

Q: How does the VS-CEG SERIES machine combine sheet and pipe cutting in one system?

A: The VS-CEG SERIES is engineered with dual-use cutting heads and a robust structure to accommodate both flat sheets (up to 30001500mm) and pipes (20-220mm diameter, up to 6m long). Its integrated CNC system switches between modes seamlessly, enabling users to process varied workpieces efficiently on one machine.

Q: What materials and thicknesses can this laser cutter handle?

A: This machine is capable of cutting carbon steel, stainless steel, aluminum, brass, galvanized sheets, and other metals. It supports thicknesses from 0.5mm to 30mm, depending on the material and chosen laser power (available from 1000W up to 20kW).

Q: When should the exhaust and fume extraction system be used?

A: The integrated dust removal and fume extraction system is active during all cutting operations, ensuring a clean, safe workspace by capturing smoke and particles generated by the laser cutting process. This is particularly important for indoor and 24-hour operations.

Q: Where can the VS-CEG SERIES machine be installed and used?

A: It is suitable for industrial environments, such as automotive, mechanical fabrication, and metal processing workshops, requiring 380V three-phase power and clean, dry compressed air (0.6-0.8MPa). The recommended ambient temperature is 5-40C, with humidity 80%, non-condensing.

Q: What is the process for switching between sheet and tube cutting?

A: Switching is facilitated by the machine's CNC control system and adaptable fixture design. Operators can load different workpieces as needed and utilize the control panel to select the appropriate cutting program. For models with shuttle tables, exchange is accomplished in less than 15 seconds.

Q: How does the auto-focus laser cutting head benefit production?

A: The auto-focus cutting head automatically adjusts the focus according to material thickness, ensuring precise cuts and minimizing manual intervention. This not only boosts productivity and versatility but also maintains high cut quality throughout the production run.

Q: What are the advantages of using a fully enclosed fiber laser machine?

A: A fully enclosed design offers enhanced operator safety by isolating the cutting area, reduces dust/fume exposure, and improves worksite cleanliness. Together with automated features and robust construction, it ensures reliable, high-precision, and safe operation for demanding industrial applications.
