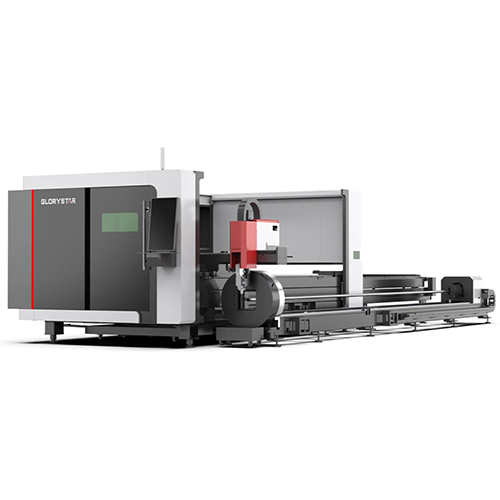

GS-CEG SERIES Fully Enclosed Sheet And Tube Combined Laser Cutting Machine

GS-CEG SERIES Fully Enclosed Sheet And Tube Combined Laser Cutting Machine Specification

Usage & Applications
Sheet Metal Cutting, Tube Cutting, Industrial Manufacturing, Construction, Machinery

Phase
Three Phase

Working Area
1500mm x 3000mm (sheet) & up to 6m (tube)

Technology
Fiber Laser Cutting Technology

Power
1000W~6000W (customizable)

Product Type
Fully Enclosed Sheet And Tube Combined Laser Cutting Machine

Laser Type
Fiber Laser

Material
Carbon Steel, Stainless Steel, Aluminum, Brass, Galvanized Sheet

Cutting Thickness
0.5-22 mm (depends on material and power)

Cutting Area
3000mm x 1500mm (customizable)

Cutting Speed
up to 120m/min (depending on material and thickness)

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
CypCut/Bochu

Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS

Control System
CNC Control

Voltage
380V 50/60Hz

Weight (kg)
6000kg to 9500kg (varies by model)

Dimension (L*W*H)
9300mm 3200mm 2300mm (approx.)

Capacity
High Production Capacity

Feature
Fully Enclosed, Dual Use (Sheet & Tube Cutting), Dust-proof, Safety Protection

Color
Customizable (Standard: White/Grey)

Lubrication
Automatic Central Lubrication

Clamping System
Pneumatic Chucks for Fast Tube Loading & Unloading

Enclosure Type
Full Protection Enclosure with Observation Windows

Drive System
Imported Servo Motor and Precision Rack-Gear

Tube Length Supported
Up to 6 meters

Laser Source Brand
IPG/MAX/Raycus (optional)

Applicable Tube Diameter
20mm - 220mm

Protection System
Automatic Alarm & Emergency Stop, Intelligent Fault Detection

Table Structure
Aviation Aluminum Beam

Dust Extraction System
Integrated Smoke Exhaust & Filtration

Positioning Accuracy
±0.03mm

Software Compatibility
Compatible with AutoCAD, CorelDraw, and other mainstream CAD software

Working Environment
Temperature 5-40°C, Humidity < 80% (non-condensing)

Remote Control
Wireless Handheld Remote (optional)

Repeatability
±0.02mm

Max Acceleration
1.5G

Operator Interface
HD Touch Screen

About GS-CEG SERIES Fully Enclosed Sheet And Tube Combined Laser Cutting Machine

	GS-3015CEG (Customizable for different format)
Working Area	30001500mm / 510ft
Laser Power	3000-6000W
Positioning Accuracy	±0.03mm / ±0.0012in
Repeat positioning Accuracy	±0.02mm / ±0.0008in
Overall Dimensions	1010045002200mm / 33157.2ft

Cutting-Edge Precision for Every Job

Engineered with high accuracy and repeatability, the GS-CEG SERIES delivers superior results for both sheet and tube cutting tasks. Its precision CNC system, robust aviation aluminum beam, and imported servo motor drive ensure stable, consistent, and finely detailed work. Perfect for industrial and manufacturing environments demanding reliable operation and excellent quality.

Seamless Dual Capability: Sheet & Tube

Equipped to handle both sheet metal (up to 3,000 x 1,500mm) and tubes (20-220mm diameter, up to 6m length), this laser cutter empowers manufacturers to diversify production without multiple machines. Pneumatic chucks enable swift tube changes, while the enclosure design maximizes operator safety and dust control.

User-Friendly Operation & Smart Safety

The GS-CEG SERIES offers an intuitive HD touch screen interface and optional wireless handheld remote for convenient operation. Automatic alarms, emergency stop features, and integrated intelligent fault detection enhance workplace safety, making it a reliable solution for continuous high-volume production.

FAQ's of GS-CEG SERIES Fully Enclosed Sheet And Tube Combined Laser Cutting Machine:

Q: How does the GS-CEG SERIES ensure precise cutting for both sheets and tubes?

A: The GS-CEG SERIES utilizes advanced CNC control, an imported servo motor, and a high-precision rack-gear drive system. This sophisticated combination achieves positioning accuracy of 0.03mm and repeatability of 0.02mm, delivering consistent and intricate cuts on sheets and tubes alike.

Q: What materials and thicknesses can this machine process?

A: This laser cutter is suitable for carbon steel, stainless steel, aluminum, brass, and galvanized sheets, cutting thicknesses between 0.5mm and 22mm depending on the chosen power (1000W-6000W). The system adjusts seamlessly for a wide spectrum of industrial metal fabrication requirements.

Q: When is it ideal to use the dual cutting capabilities of this machine?

A: The dual-use feature is ideal when your manufacturing or project workflow requires processing both flat sheets and round or rectangular tubes. This setup eliminates the need for separate machines, streamlining operations in industries like machinery manufacturing, construction, and fabrication workshops.

Q: Where can the GS-CEG SERIES be installed, and what are the environmental requirements?

A: This machine is intended for installation in industrial environments with ambient temperatures between 5C and 40C, and humidity below 80% (non-condensing). Its robust enclosure and integrated dust extraction system ensure a clean and safe workspace irrespective of the installation site.

Q: How does the pneumatic clamping and automatic lubrication system benefit operations?

A: Pneumatic chucks enable fast, effortless tube loading and unloading, minimizing downtime and maximizing throughput. The automatic central lubrication system further reduces routine maintenance needs, ensuring smooth, uninterrupted machine operation over extended production periods.

Q: What software and file formats are compatible with this laser cutter?

A: The GS-CEG SERIES is compatible with mainstream CAD software, including AutoCAD and CorelDraw. It supports a wide range of graphic formats such as AI, PLT, DXF, BMP, DST, DWG, and LAS, offering convenient workflow integration for diverse design and engineering teams.
